IEC60695 220V 50Hz Leakage Tracking Tester, 45 - 50 Drops / cm3
Product introduction:
The test machine is designed and manufactured according to the requirements of the relevant standards, such as IEC 60112, IEC60695 and etc. It is used for determination of the relative resistance to tracking performance that solid electrical insulating material under the action of an electric field, when the surface exposed to water containing impurities. Flammability Testing Equipment
If electrical products affected by moisture and impurities environmental, leakage may be caused on the insulation between different polarity live parts or live parts and grounded metal, the generated arc will cause short circuit or electrical erosion due to discharge, even cause fire. The tracking test is a destructive test to insulating material simulating the above situation, to measure and assess the relative resistance to tracking when the insulator is in the effect of electric and impurities in water-containing. Flammability Testing Equipment
This equipment adopts advanced PLC control system, touch-screen humanized button operating device, high quality materials and professional technology, which make itself has excellent quality, stable and durable performance and beautiful appearance. In addition, automatic drip timing device, accurate electrode pressure sensor display, simple operation and high accuracy improve the efficiency of the test and make our equipment takes a leading position in similar products. Flammability Testing Equipment
Standard:IEC60112-2009, UL746A, IEC60335-1, IEC60598-1 and ASTM D3638-92.
Application:It is used to evaluate the tracking resistance performance of solid insulating material surface under the combined influence of electric field and humid or contaminate medium. In a word, this device is used to measure the compare tracking index (CT1) and electrical resistance index (PT1).
Flammability Testing Equipment
Test sample:Lighting equipment, low-voltage electrical appliances, household electrical appliances, machine tools, electrical appliances, electric motors, electric tools, electronic instruments, electrical instruments, information technology equipment, insulation materials, engineering plastics, electrical connectors, accessories industry.
Feature: The working principle of the leakage tracking test(tracking index testing) is that the conducting liquid (0.1%NH 4 CL) of required volume in the required height (35mm ) and required time (30s) drops with the voltage between the platinum electrodes (2mm× 5mm )on the surface of solid insulating material. Thus the users evaluate the tracking resistance performance of solid insulating material surface under the combined influence of electric field and humid or contaminate medium. In a word, this device is used to measure the compare tracking index (CT1) and electrical resistance index (PT1). Flammability Testing Equipment
Parameters:
| Timing device | 9999X0.1S Resolution | | Drip interval | Adjustable |
| Electrode material | Platinum | The height of the drip | 30～40mm |
| Electrode specifications | 5mm*2mm | Drip delay | 0.2S (solenoid valve open time) |
| Electrode spacing | 4±0.1mm | Drip size | 45 ~ 50 drops / cm3 |
| Electrode pressure | 1±0.05 N | Delay electric circuit | 2 ± 0.1S (at 0.5A) |
| Electrode angle | 60° | Test voltage range | 0～600V Accuracy:1.5% |
| Short circuit voltage drop | 8% MAX | Electrical parameters | 1KW/230VAC/50Hz |
| Short-circuit current | 1±0.1A Accuracy: 1% | Working volume | > 0.5 M³ |
| Environmental requirements | 0 ~ 40 ℃ / ≤ 80% relative humidity | |
| Standards | IEC60112, UL746A, IEC60695, ASTMD3638. | |

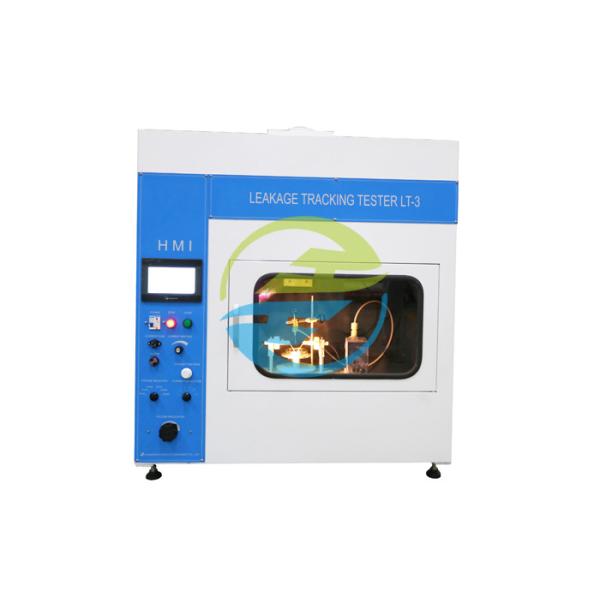

Picture for reference:
